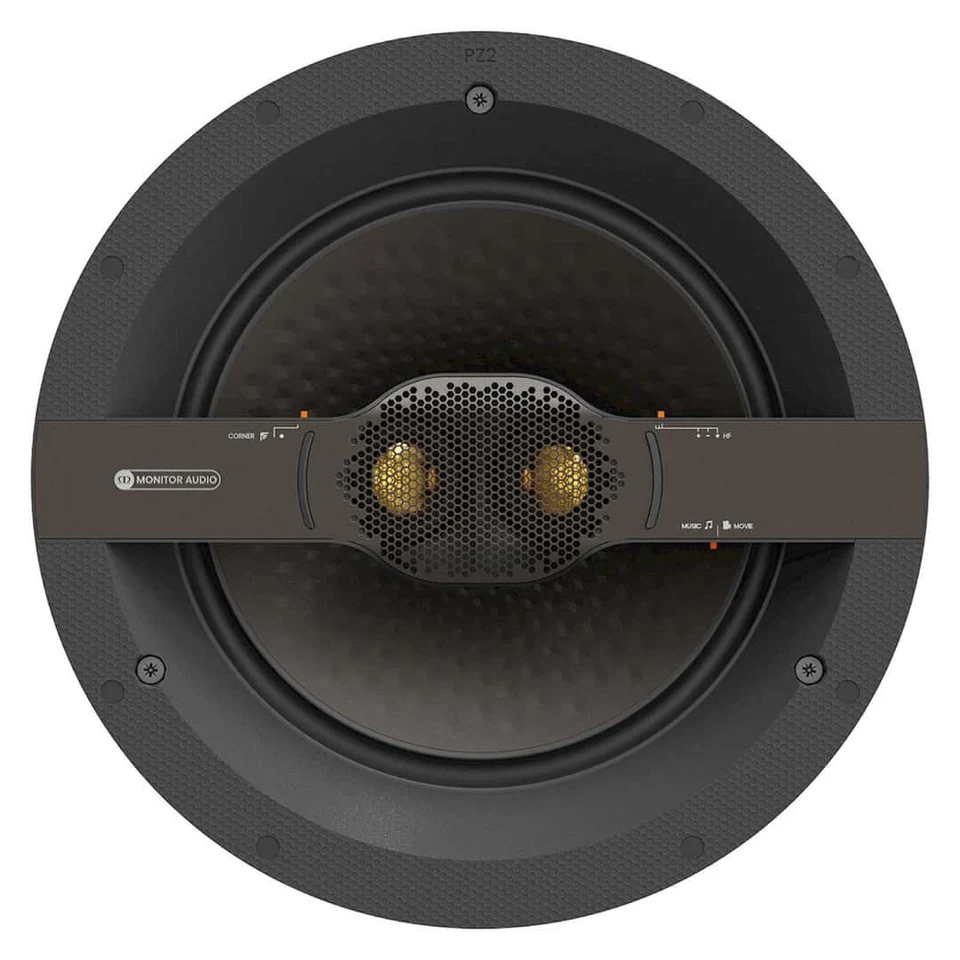

Ideal for installations where pristine acoustic performance is required | Switchable design for three modes | Two-way design | 2 x 1.25" C-CAM tweeter with UD Waveguide I 1 x 9" RST II mid-bass driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment
Specifications
System Format
2–Way
Channels
1 (Mono)
2 (Stereo)
Frequency Response, Installed (-6dB)
30 Hz – 30 kHz
Nominal Impedance
4 Ohm (Mono)
8 Ohm (Stereo)
Minimum Impedance (20Hz to 20kHz)
3.2 Ohm @ 15 kHz (Mono)
6.4 Ohm @ 15 kHz (Stereo)
Sensitivity (2.83Vrms@1m, Installed)
88 dB
Maximum Peak SPL* (single speaker @ 1m Z-Weighted)
(Mono) 117dB
Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)
240 W (Mono)
2 x 30 – 120 W (Stereo)
Recommended Amplifier Power (RMS into 8 OHM, Music Signal)
60 – 240 W (Mono)
2 x 60 – 240 W (Stereo)
Drive Unit Complement
1 x 9" (229 mm) RST II dual-coil bass driver
2 x 1.25" (32 mm) C-CAM tweeter
Crossover Frequency
LF/HF: 2 kHz
Mounting Depth
99 mm (37/8")
Cut-Out Hole Diameter
248 mm (93/4")
External Dimensions (Including Grille (H x W x D))
278 x 278 x 103 mm (1015/16 x 1015/16 x 44/16")
Weight (each)
2.7 kg (6 lb)
