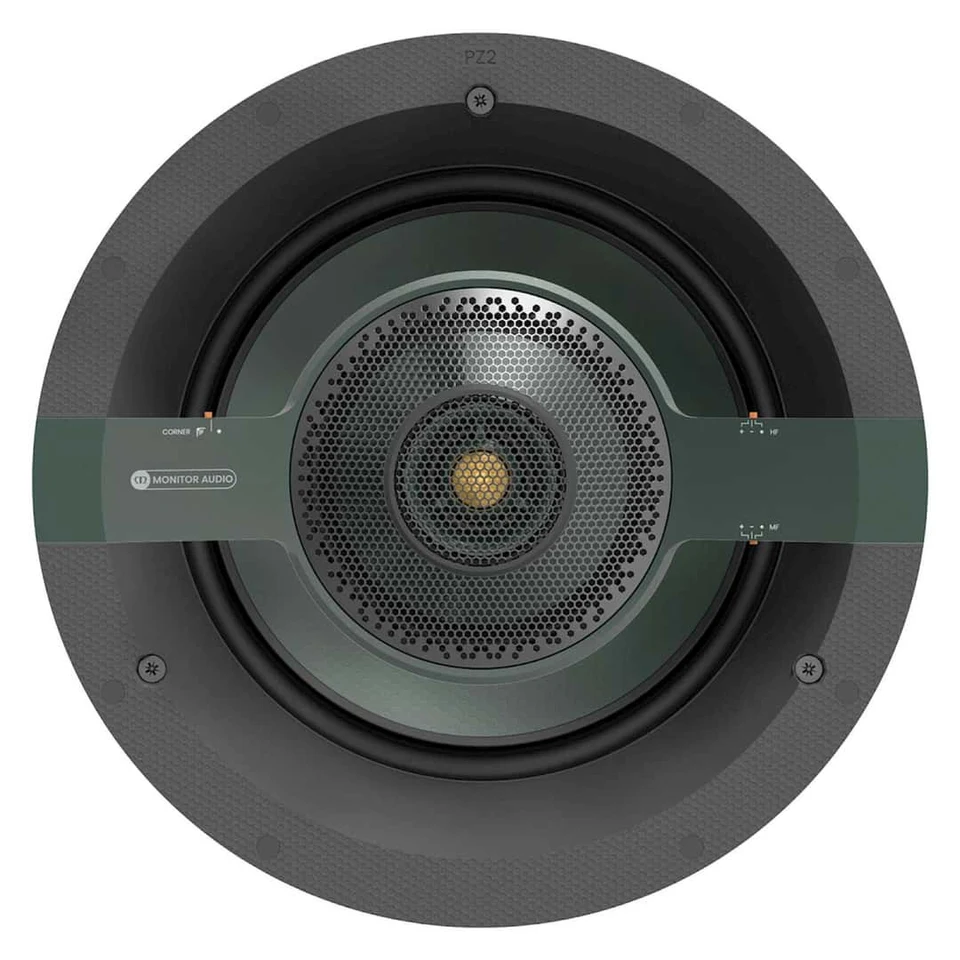

Monitor Audio C3L

Ideal for installations where high-performance acoustics are desired | Three-way design | Mid-frequency ‘mid-pod array’ | 1 x 1" IDC II tweeter with UD Waveguide II for lifelike sound | 1 x 9" RDT III bass driver | 1 x 4" IDC II midrange driver | Quik-Link speaker cable connector for quicker installation | Tri-Grip II for easy and secure fitment

Specifications

System Format

3–Way

Channels

1

Frequency Response, Installed (-6dB)

45 Hz – 35 kHz​

Nominal Impedance

6 ohm

Minimum Impedance (20Hz to 20kHz)

4.8 Ohm @ 2 kHz

Sensitivity (2.83Vrms@1m, Installed)

89 dB

Maximum Peak SPL* (single speaker @ 1m Z-Weighted)

119 dB

Continuous Power Handling (RMS into Nominal Impedance, Pink Noise with 6dB Crest Factor)

150 w

Recommended Amplifier Power (RMS into 8 OHM, Music Signal)

60 – 225 W

Drive Unit Complement

1 x 9" (229 mm) RDT III bass driver

1 x 4" (102 mm) IDC II midrange driver

1 x 1" (25 mm) IDC II tweeter

Crossover Frequency

LF/MF: 700 Hz

MF/HF: 3.5 kHz

Mounting Depth

157 mm (63/16")

Cut-Out Hole Diameter

248 mm (93/4")

External Dimensions (Including Grille (H x W x D))

278 x 278 x 161​ mm (1015/16 x 1015/16 x 65/16")

Weight (each)

5 kg (11 lb)

Pre-Construction Bracket

Cl-b

Cabinet Finish

Matte black & Orange​ & Green

Sold As

Single Unit with CL-Round Grille (white)

Corner Switch

On/Off

HF Switch

- /0/ +

MF Switch

- /0/ +
