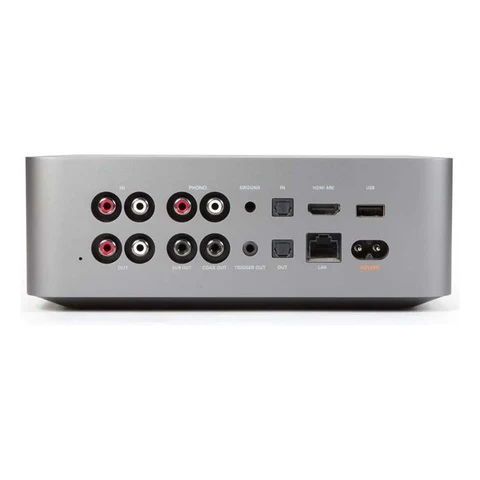

At its core, the Ultra features an audiophile-grade ESS ES9038 Q2M SABRE DAC, ensuring high-resolution audio (up to 32-bit/384kHz) is delivered with exceptional clarity, detail, and dynamic range. It serves as a versatile digital preamplifier, boasting a comprehensive suite of inputs including HDMI ARC, Optical, RCA Line-In, and even a Phono input for your turntable. Outputs span RCA, Optical, Coaxial, USB audio, a dedicated subwoofer out with bass management, and a high-fidelity headphone amplifier.
Equipped with the latest Wi-Fi 6E and Bluetooth 5.3, the WiiM Ultra offers rock-solid wireless streaming from all your favorite services like Spotify, TIDAL, and Qobuz. With advanced room correction, customizable EQ, and seamless multi-room capabilities, the WiiM Ultra is the ultimate hub for an immersive and personalized listening experience, ready to breathe new life into any audio setup
Features
Your Music Looks Great

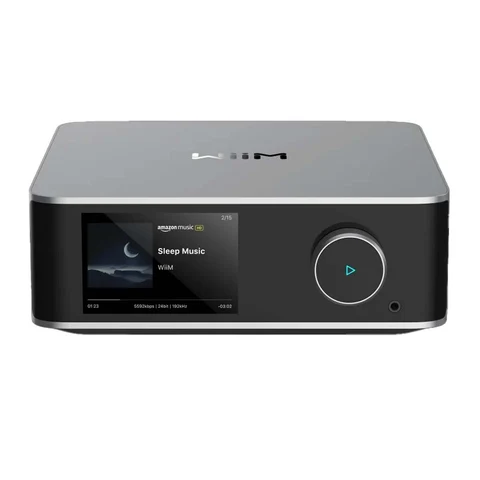

Features a 3.5" vibrant touch screen, displaying large album art, VU meter, instant feedback, music playback, and other customizable displays. This makes navigating through inputs, outputs, and settings a smoother and more user-friendly experience, also provides immediate visual feedback to the user's actions.
Seamless Multiroom Audio
Effortlessly create a unified sound system across your home using the WiiM Ultra with existing Amazon Echo, Google Home, and WiiM devices. Easily manage music streaming throughout your space with the intuitive WiiM Home App—control volume, synchronize speakers, save your favorite tunes, set alarms, and customize settings, all from one central hub.
Customized Hi-Res Audio
Stream crystal-clear music up to 24-bit/192 kHz from platforms like Spotify, Amazon Music, TIDAL, Qobuz, or your own library. Enjoy gapless playback and superior sound quality. Personalize your audio with advanced room correction and independent EQ settings tailored to your space.
Enhance Your Home Theater Experience
Quickly enhance your entertainment with the WiiM Ultra's HDMI ARC and Subwoofer Out. Experience rich stereo sound for movies, shows, and games. Customize your sound experience with tailored EQ settings. Add a powered subwoofer for deep, cinematic bass. The WiiM Ultra ensures your home audio setup is both powerful and straightforward, bringing superb sound quality with minimal effort.
Specifications
Touch Display: - Glass-covered 3.5" vibrant touchscreen display: - Displays App widgets, large album pictures, playback control, playing queue, presets, EQ, audio input and output, and device settings - Guides users through the OOBE and OTA - Provides feedback when there's a change in the play mode Controls:Volume knob, play/pause, setup, and more LED: 4 Color RGBW LED indicates the device status Audio Input:HDMI ARC, Optical, Line, and Phono (including MM, MC), up to 24-bit/ 192 kHz Audio Output:RCA, Headphone, Coax, Optical, and USB, up to 192 kHz/ 24-bitWireless to another BT, DLNA receiver Performance Line out： Maximum output: 2.1V RMS SNR: 121 dB (A-wt) THD+N (1 kHz): 0.00018% (-115 dB) for 44.1k to 192k FR curve:+/-0.05 dB Headphone out： 300 ohms: SNR (119 dB), THD+N (-99 dB) 32 ohms: SNR (119 dB), THD+N (-92 dB) EQ:24 preset EQ settings, 10-band Graphics EQ, 10-band parametric EQ Subwoofer Output:Comprehensive bass management - Adjustable crossover frequency, level, phase, and latency. Power Supply:100-240V AC input, 50/60 Hz, 0.5A Max Network:Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands. 10M/100 Mbps LAN External Storage:Access personal media library and use it as a media server for other WiiM and DLNA devices, Support FAT32, NTFS, and EXT4 file systems. Bluetooth:Bluetooth 5.3 with BLE and BT LE Audio, supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM voice remote. Supported Streaming Protocol:Spotify Connect, TIDAL Connect, Google Cast Audio (CastLite), Alexa built-in, DLNA, Squeezelite, Roon Ready
