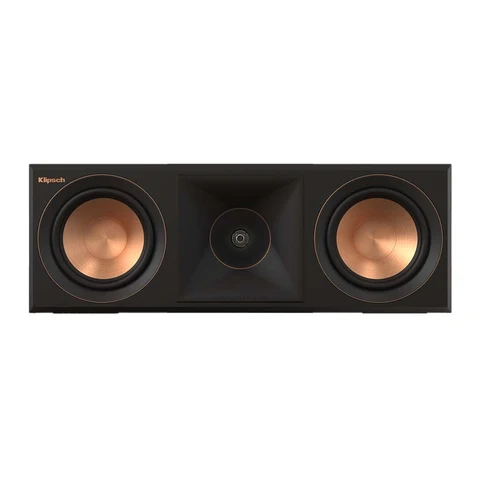

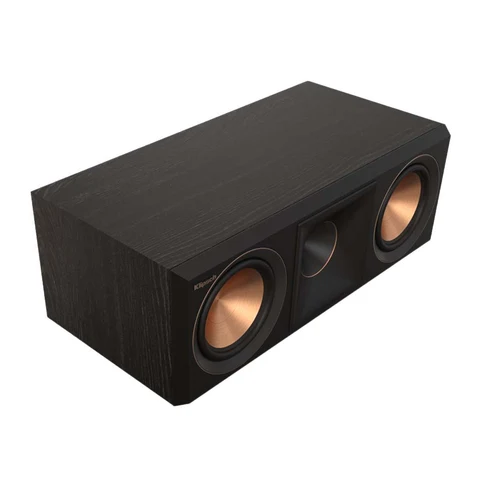

Dual 5.25-inch Spun-Copper Cerametallicâ„¢ Woofers provide dynamic mid-bass and a seamless blend with the high frequencies, further supported by a rear-firing Tractrix® Port for enhanced bass response. The RP-500C II boasts premium aesthetics with a scratch-resistant Ebony vinyl finish (or Piano Black Gloss) and sturdy cast aluminum feet. Its high efficiency and accurate sound make it an ideal choice for enhancing dialogue clarity and dynamic performance in small to medium-sized rooms, integrating perfectly with other Reference Premiere II speakers.
Features
90° x 90° Silicon Composite Hybrid Tractrix Horn
Horn loading maximizes efficiency and increases detail while focusing high frequencies toward the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high-frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. Combined, they create the cleanest, most natural sound possible. The second generation increases horn size for a larger soundstage and enhanced directivity.
Linear Travel Suspension (LTS) Titanium Diaphragm Tweeter
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
Vented Tweeter Design
The vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high-frequency reproduction.
Cerametallic Woofers – All New Design
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. New aluminum shorting rings reduce distortion and increase power handling, while the new motor structure improves transient response with more control, greater speed, and accuracy.
Tractrix Ports
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, reducing port noise for punchier low frequencies. Klipsch Tractrix ports have custom-designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

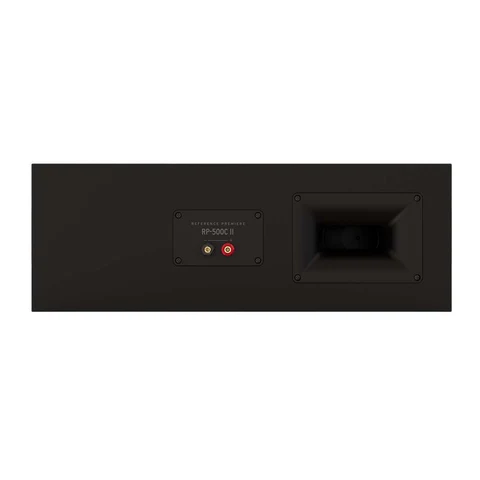

New and Improved Input Panel
Featuring audiophile-grade wire and easily accessible aluminum binding posts for any connection type.
Furniture Grade Materials and Finishes
Finishes include ebony vinyl and walnut vinyl, both featuring satin painted baffles with a scratch-resistant finish.

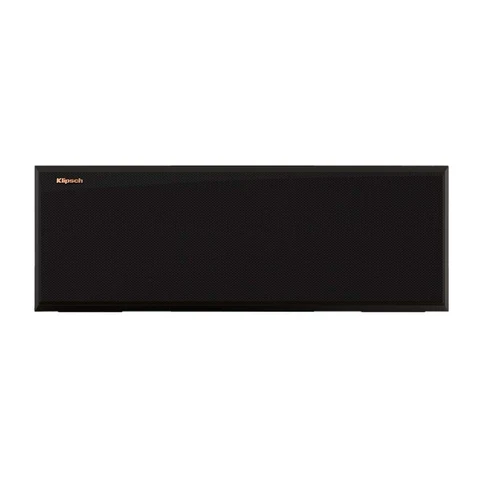

Strong, Flexible, Removable Grille
The grille attaches magnetically, allowing for an elegant transition from a powerful showstopper to a discrete performance piece.
Cork Pads
Cork pads replace rubber bumpers, providing secure placement on a stand or table.
Specifications
Frequency Response: 56-25kHz +/- 3dB Sensitivity: 94dB @ 2.83V / 1m Power Handling (Cont/Peak): 100W/400W Nominal Impedance: 8 Ohms Compatible Crossover Frequency: 1630Hz High Frequency Driver: 1" Titanium LTS Vented Tweeter with Hybrid Cross-Section Expanded Tractrix® Horn Low Frequency Driver: Dual 5.25" Cerametallic™ Cone Woofers with Faraday Rings Enclosure Material: MDF (Internally Braced) Enclosure Type: Bass Reflex via Rear-Firing Tractrix® Port Inputs: Single Aluminum Binding Posts Height Inches (mm): 6.87" (17.4 cm) Width Inches (mm): 19.34" (49.1 cm) Depth Inches (mm): 10.58" (26.9 cm) Product Weight lbs (kg): 18.3lb (8.30kg) Finish: Ebony Accessories: Angle Screw
